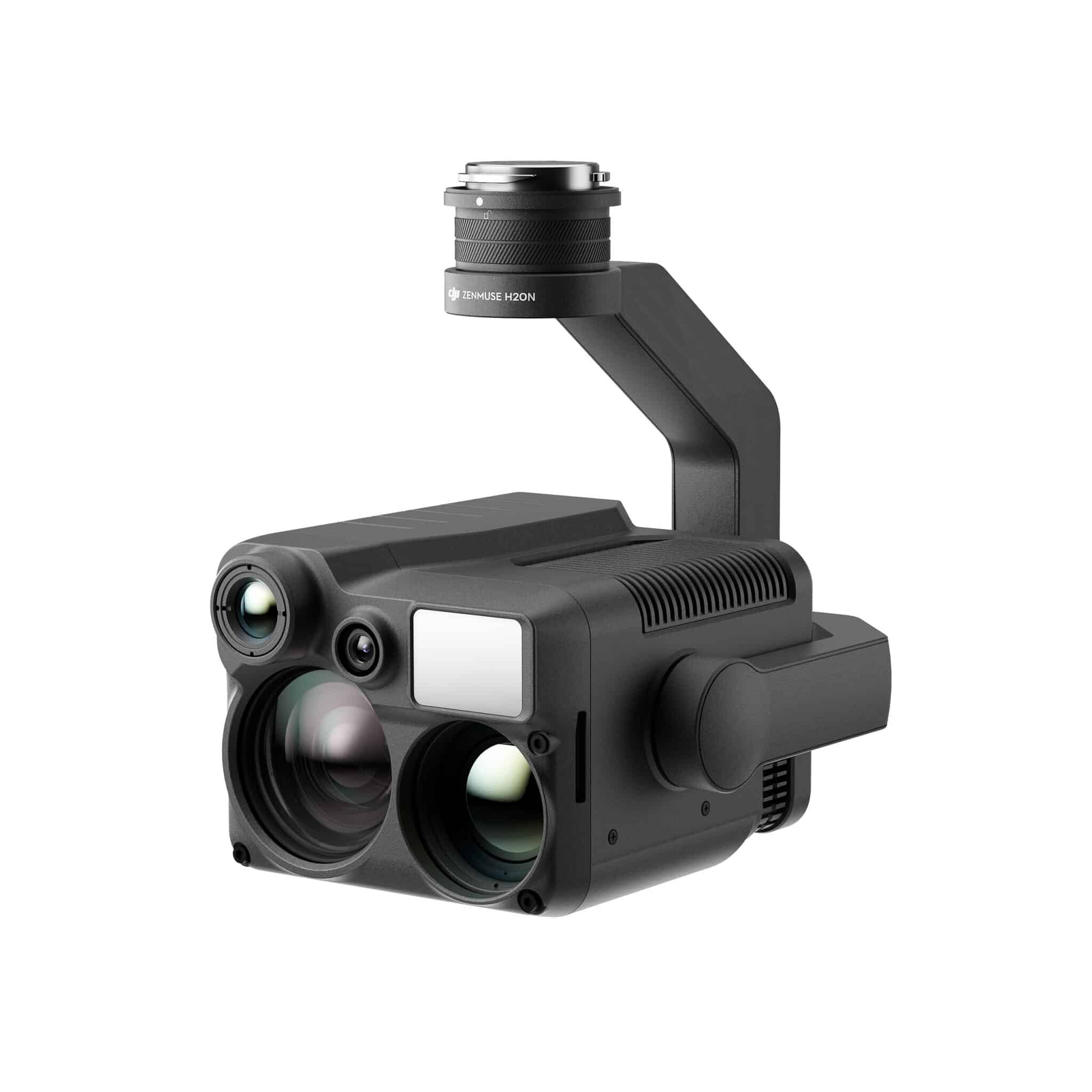

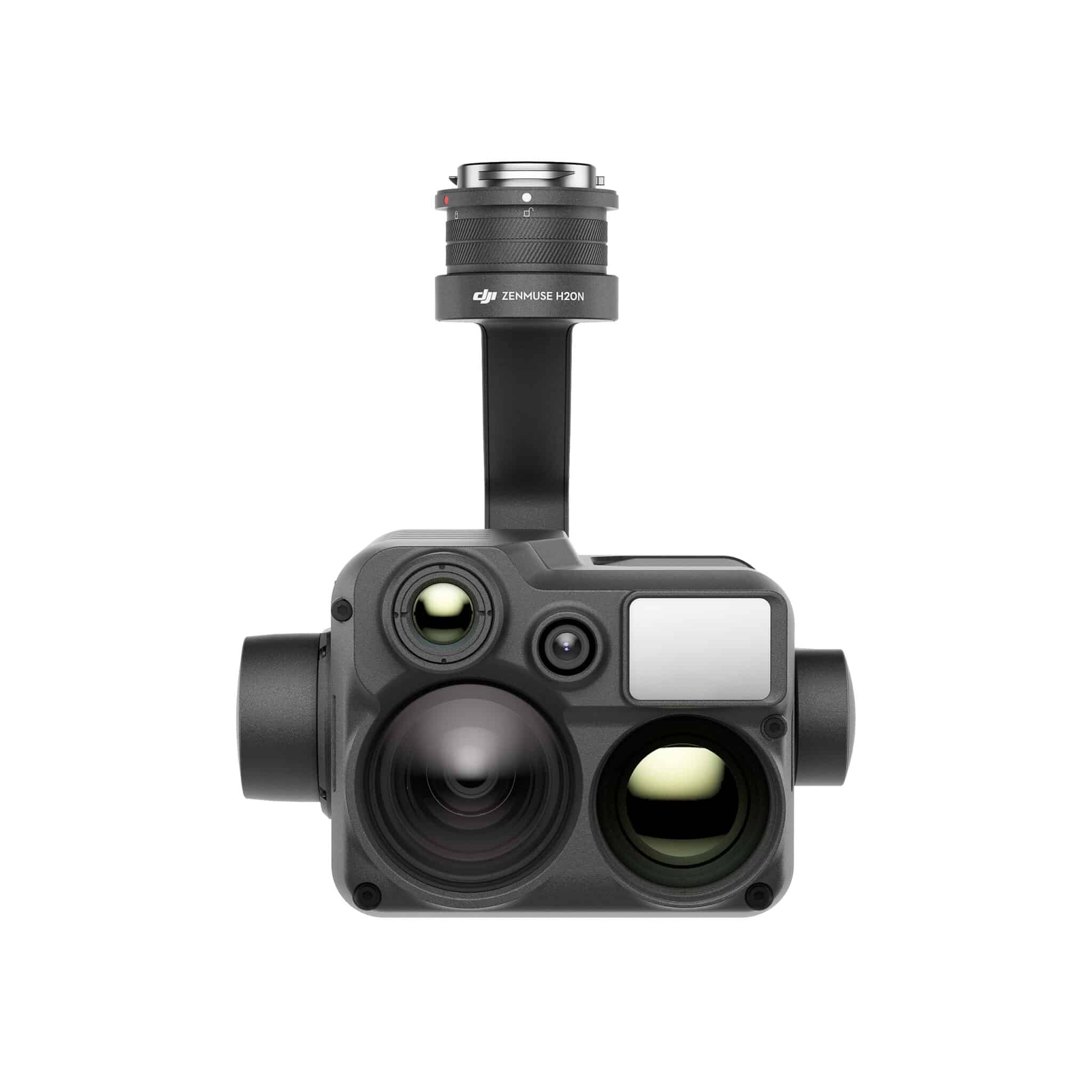

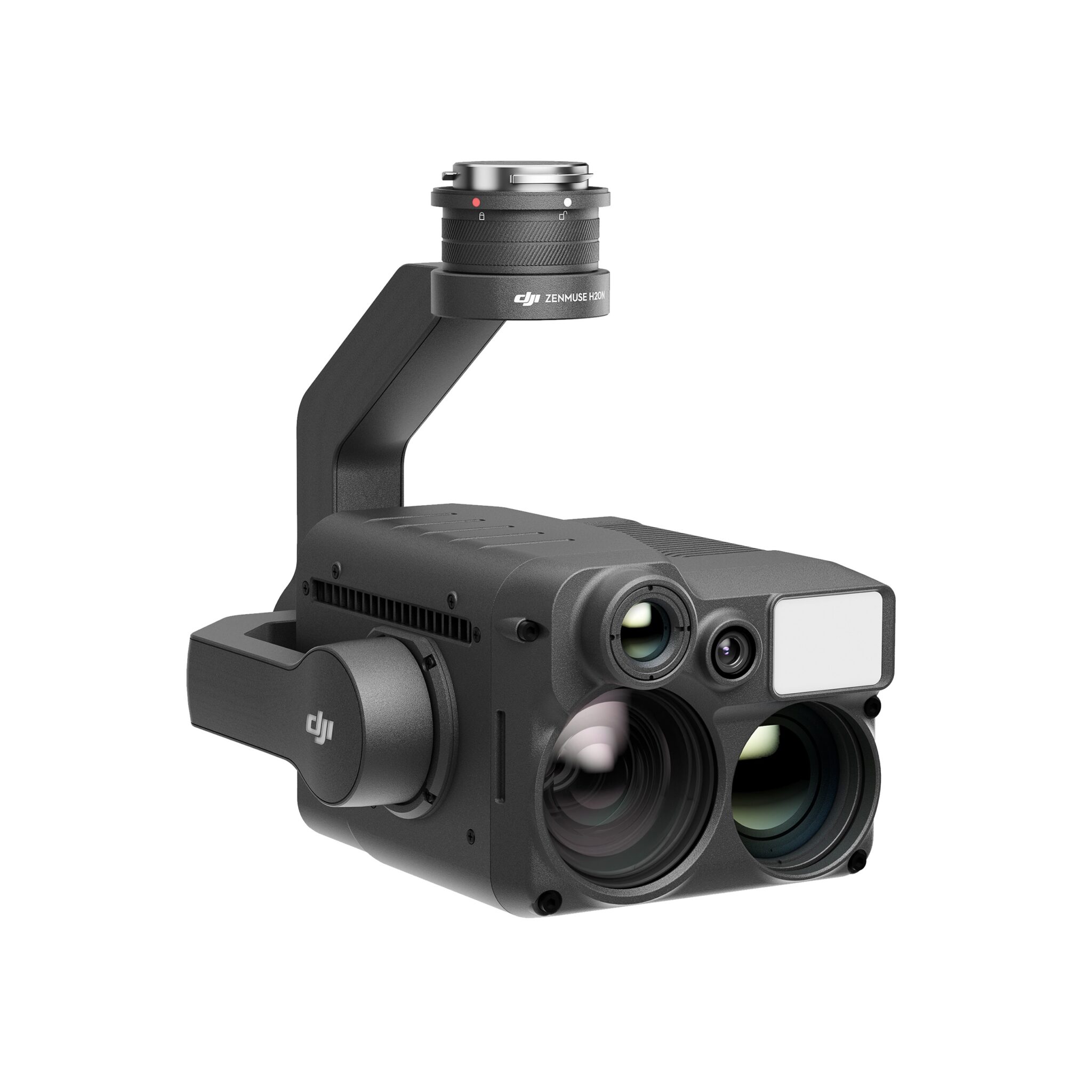

DJI Zenmuse H20N Worry-Free Basic Combo

Specificaties

• Afmetingen: 178 x135 x 161 mm
• Gewicht: 878±5 g
• Beschermings Rating: IP44
• Laser Safety: Class 1M (IEC 60825-1:2014)
• Compatibel met: Matrice 300 RTK
• Gimbal Angular Vibration Range: ±0.01°
• Mount: Skyport – afneembaar

Zoom Camera

• 1/1.8″ CMOS; Effective Pixels: 4M
• Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
• Diafragma: f/1.6-f/11
• Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
• Focus Mode: MF/AF-C/AF-S
• Exposure Mode: Manual, Auto
• Exposure Compensation: ±3.0 (1/3 increments)
• Metering Mode: Spot Metering, Average Metering
• AE Lock: Supported
• Electronic Shutter Speed: Photo: 8-1/8000 s
• Video: 1/30-1/8000 s
• Photo/Video (Night Scene): 1/15-1/8000 s
• ISO Range: Video: 100-102400, Photo: 100-102400
• Video Resolution: 2688 x 1512@30fps, 1920 × 1080@30fps, 1920 × 1080@15fps ( Night Scene)
• Video Format: MP4
• Video Caption: Supported
• Max Image Size: 2688 × 1512
• Photo Format: JPEG

Wide Camera

• Sensor: 1/2.7″ CMOS; Effective Pixels: 2M
• DFOV: 73.6°
• Focal Length: 4.5 mm (equivalent: approximately 29 mm)
• Diafragma: f/2.8
• Focus: 1 m to ∞
• Exposure Mode: Auto
• Exposure Compensation: ±3.0 (1/3 increments)
• Metering Mode: Spot Metering, Average Metering
• AE Lock: Supported
• Electronic Shutter Speed: 1-1/8000 s
• ISO Range: Video: 100-102400, Photo: 100-102400
• Video Resolution: 1920 × 1080@30fps
• Video Format: MP4
• Video Caption: Supported
• Max. Image Size: 1920×1080
• Image Format: JPEG

Tele Infrared Thermal Camera

• Thermal Imager Uncooled VOx Microbolometer
• DFOV: 12.5°
• Focal Length: 44.5 mm (equivalent: approximately 196 mm)
• Diafragma: f/1.2
• Focus: 45 m to ∞
• Equivalent Digital Zoom: 16x, 32x
• Video Resolution: 640 × 512@30fps
• Video Format: MP4
• Image Resolution: 640 × 512
• Image Format: R-JPEG* (16 bit raw included)
• Pixel Pitch: 12 μm
• Spectral Band: 8-14 μm
• Sensitivity (NETD): ≤50 mK @ f/1.0
• Temperature Measurement Method: Spot Meter, Area Measurement
• Scene Range: -20° C to 150° C (High Gain), 0° C to 500° C (Low Gain)
• Temperature Alert: Supported
• FFC: Auto/Manual
• Palette: White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Wide Infrared Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer
• DFOV: 45.5°
• Focal Length: 12 mm (equivalent: approximately 53 mm)
• Diafragma: f/1.0
• Focus: 5 m to ∞
• Equivalent digital zoom rate: 4x
• Video Resolution: 640 × 512 @ 30 fps
• Video Format: MP4
• Image Resolution: 640 × 512
• Image Format: R-JPEG (16 bit raw included)
• Pixel Pitch: 12 μm
• Spectral Band: 8-14 μm
• Sensitivity (NETD): ≤50 mK @ f/1.0
• Temperature Measurement Method: Spot Meter, Area Measurement
• Scene Range: -20° to 150° C (High Gain), 0° to 500° C (Low Gain)
• Temperature Alert: Supported
• FFC: Auto/Manual
• Palette: White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Range Finder

• Wavelength: 905 nm
• Maximum Power: 3.5 mW
• Single Pulse Width: 6 ns
• Measuring Accuracy: ± (0.2 m + target distance x 0.15%)
• Measuring Range: 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)

Opslag

• Supported microSD Cards
• Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
• Supported File System: exFAT

Omgeving

• Werkingstemperatuur: -20° to 50° C (-4 to 122°F)
• Opslag temperatuur: -20° to 60° C (-4 to 140°F)

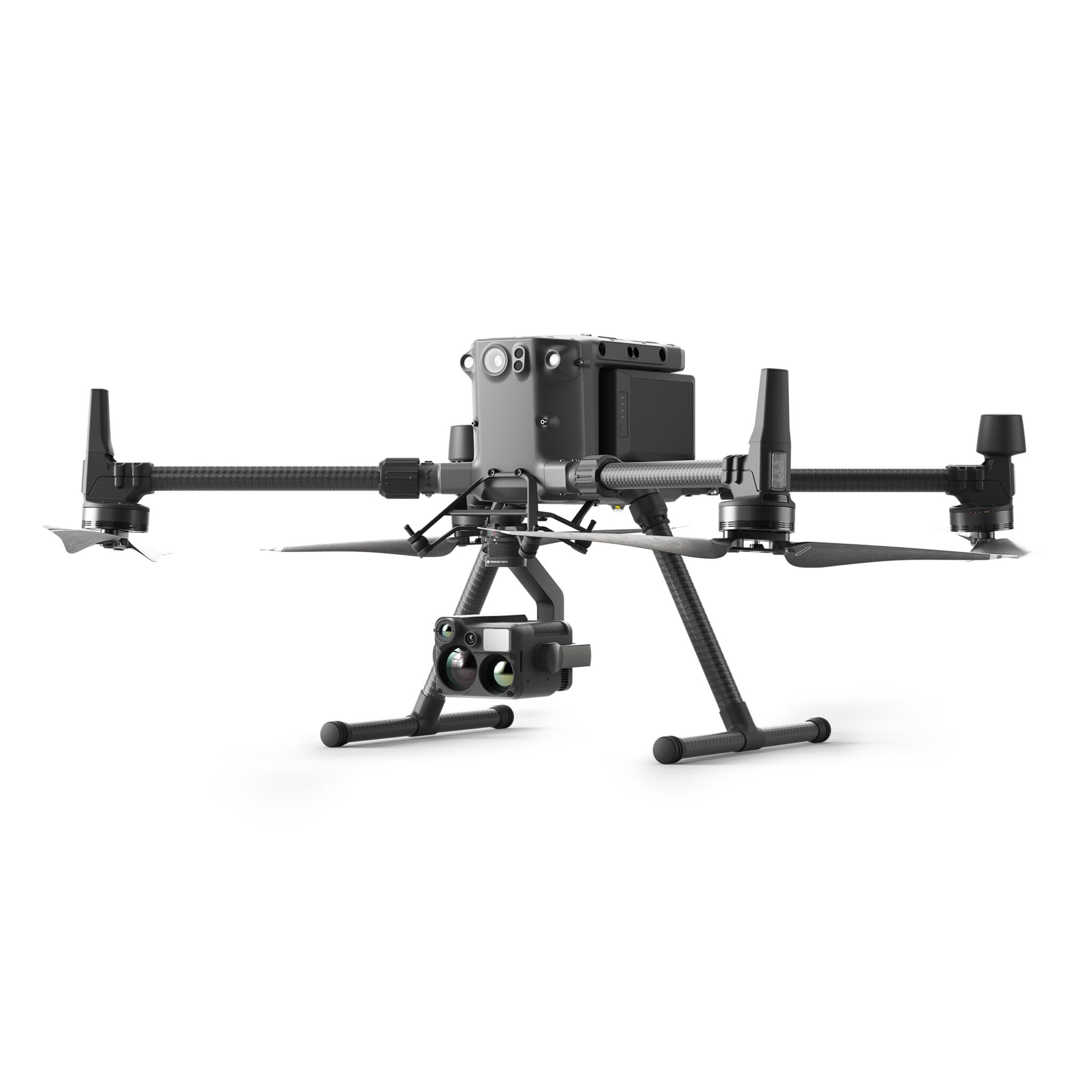

Compatibel met

• DJI Matrice 300
• DJi Matrice 350
