Emlid – Reach RS3 – Multi-band RTK GNSS receiver

Mechanical

• Dimensions126 x 126 x 142 mm
• Weight950 g
• Operating temperature-20 to +65 ºC
• Ingress protectionIP67

Electrical

• Autonomy18 hrs as an RTK rover with tilt
  22 hrs of logging
• BatteryLi-Ion 5200 mAh, 7.2
  V37.44 Wh
• ChargingUSB Type-C 5 V, 3 A

Positioning

• StaticH: 4 mm + 0.5 ppm
  V: 8 mm + 1 ppm
• PPKH: 5 mm + 0.5 ppm
  V: 10 mm + 1 ppm
• RTKH: 7 mm + 1 ppm
  V: 14 mm + 1 ppm

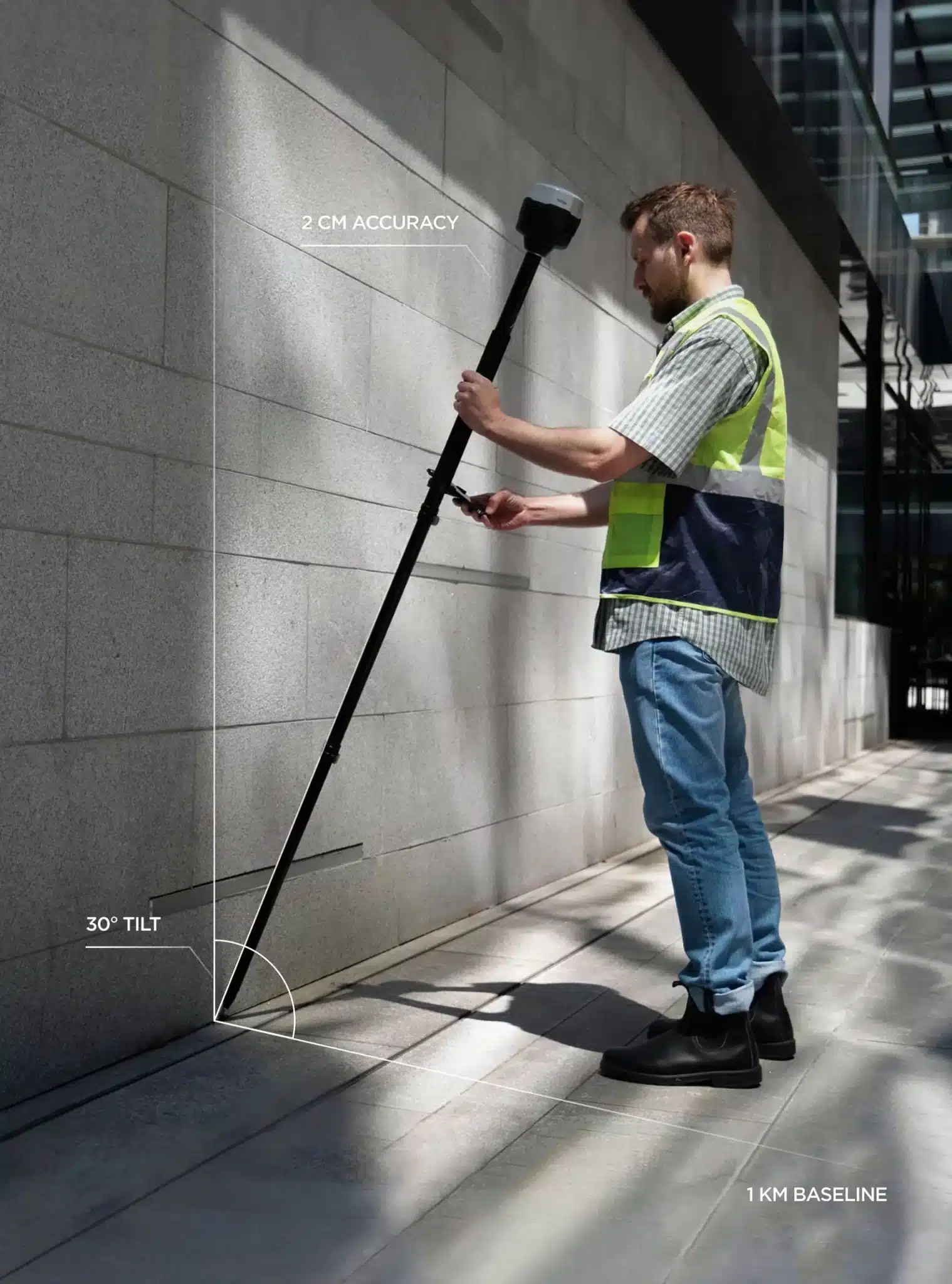

• TiltRTK + 2 mm + 0.3 mm/°
• Convergence time~5 s typically

Connectivity

• RadioLoRa
  Frequency range
  Power
  DistanceTransmit and receive
  868/915 MHz
  0.1 W
  Up to 8 kmUHF*
  Frequency range
  Protocols
  Modulation typeReceive-only
  410–470 MHz
  TRIMTALK 450S**
  GMSK
• LTE modemRegions
  BandsGlobal
  FDD-LTE: 1, 2, 3, 4, 5,
  7, 8, 12, 13,
  18, 19, 20, 26, 28, 66
  TD-LTE: 38, 40, 41
  UMTS (WCDMA/FDD):
  1, 3, 2, 4, 5, 6, 8, 19
  Quad-band, 850/1900
  900/1800 MHzSIM cardNano-SIM
• Wi-Fi802.11 b/g/n
• Bluetooth4.0/2.1 EDR
• PortsRS-232, USB Type-C
• *Requires a 410-470 MHz antenna, sold separately.**TRIMTALK is a trademark of Trimble Inc.

Data

• CorrectionsNTRIP, RTCM3
• Position outputNMEA, LLH/XYZ
• Data loggingRINEX, NMEA, LLH/XYZ, UBX

Meer info: https://emlid.com/reachrs3/
